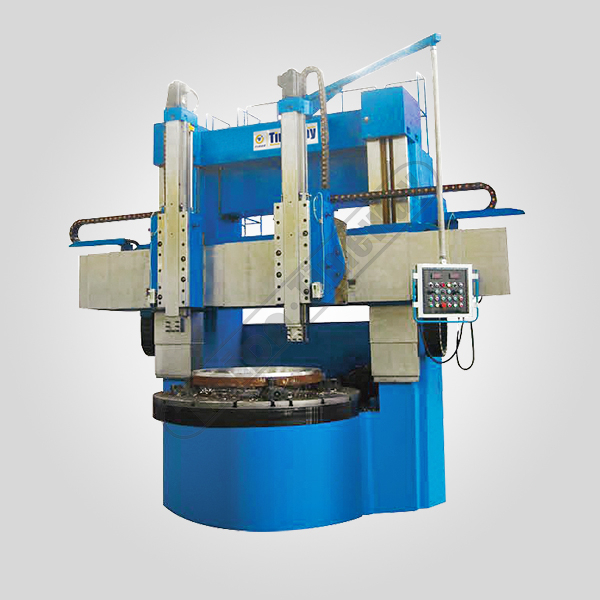

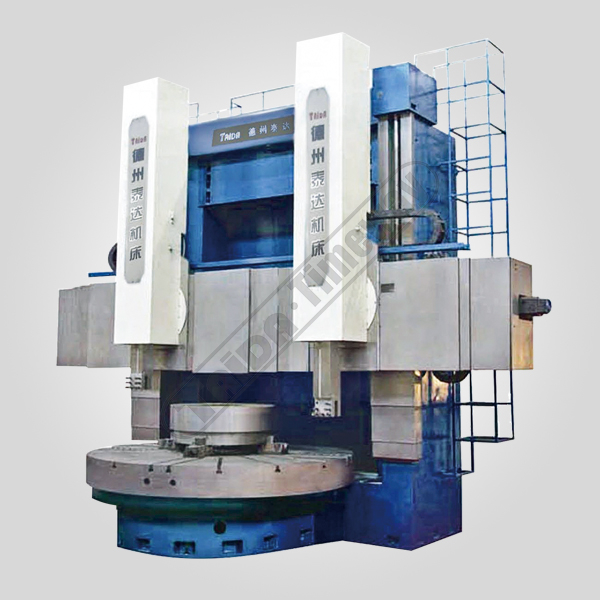

VDL2500E Double Column Vertical Lathe

Turning Diameter:
Workpiece height:
Loading Capacity:
Spindle Speed:
Availability:
Quantity:
  • VDL2500E

  • Taida Timeway Timac

Performance and Feature

1. The machine tools are suitable for motor, water turbine, aviation, mining machinery, metallurgy and common machinery industries, and are used for rough and finish machining of inside and outside cylinder, cone surface, end face and grooving.

2. The foundation part is whole casting structure, using high strength and low stress cast iron material, annealing after casting, aging treatment after rough machining. The column guide rail adopt grinding processing, beam guide and ram guide adopt grinding processing after the intermediate frequency quenching.

3. Main transmission is driven by AC motor, main drive speed changing with 16steps is controlled by solenoid valves. All gears in the gear-box adopt high frequency quenching process. Worktable can adopt sliding, static pressure and rolling guide.

4. Horizontal and Vertical feed of vertical tool-post use the ball screw driving, driven bu AC servo motor, so as to realize automation. Left and right tool-post adopt hydraulic balance, using sliding guideway in the horizontal and vertical direction, and the guideway paste high strength PTFE soft belt.

5. Hydraulic system is equipped with German traffic transmission device, to guarantee oil flow stability for the workbench lubricating.

6. The machine uses PLC control, high reliability, electrical wiring in accordance with the process execution.

7. Beautiful appearance, agreeableness, convenient operation and maintenance.

8. According to customer's raquirement, we can provide motorized spindle grinding head, cooling device, DRO and etc.

9. Equipped with CNC system according to customer's need.

10. Adopt Chinese famous quality products.



SpecificationsUnitVDL2500EVDL3150EVDL3500EVDL4000E
Max. turning diameter mm2500315035004000
Max. height of workpiecemm1600/2000/25001600/2000/25001600/2000/25001600/2000
Max. weight of workpiecet12/1612/1612/1612/16
Worktable diametermm22502500/28302830/31503150/3600
Max. cutting force of tool-postKN35(right)/30(left)35(right)/30(left)35(right)/30(left)35(right)/30(left)
Max. torque of worktable KN.m63636363
Worktable speedrpm2-63 (16)2-63 (16)2-63 (16)2-63 (16)
Feed speed range of  tool-post (stepless)mm/min0.2-5000.2-5000.2-5000.2-500
Rapid feed speed of tool-postmm/min3000300030003000
Swiveling angle of tool-post°±30°±30°±30°±30°
Cross travel of tool-postmm1400173019202165
Vertical travel of the rammm1000/12501000/12501000/12501000/1250
Tool shank sectionmm40x5040x5040x5040x50
Main motor powerkw55555555
Worktable guideway type -Dynamic pressure/rollingDynamic pressure/rollingDynamic pressure/rollingDynamic pressure/rolling
Tool-post guideway type -slidingslidingslidingsliding
Machine weighttons32.4/34.4/36.536/37/3840.1/42.2/44.442/44
Machine dimensions (LxWxH)cm504x440x620639x465x560746x540x620795x752x620
