Turning Diameter: | |
---|---|
Workpiece height: | |
Loading Capacity: | |
Spindle Speed: | |
Availability: | |
Quantity: | |
VK1600
Taida Timeway
Product Introduction: |

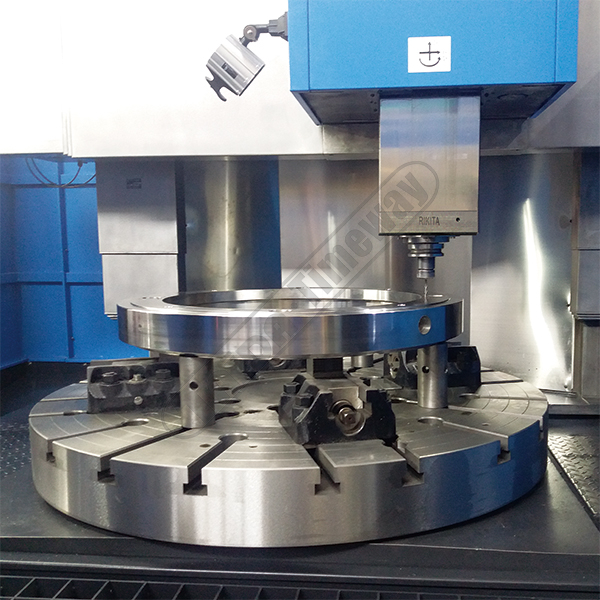

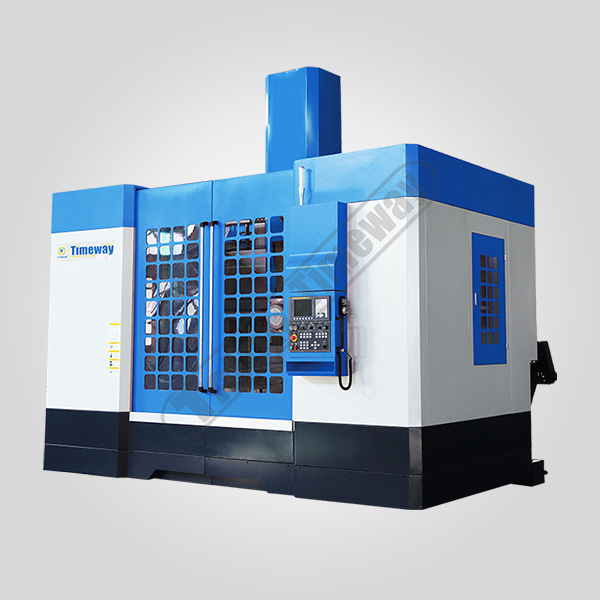

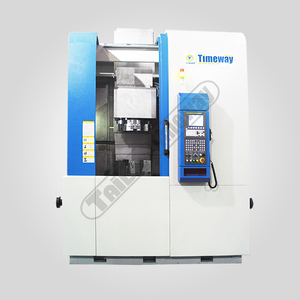

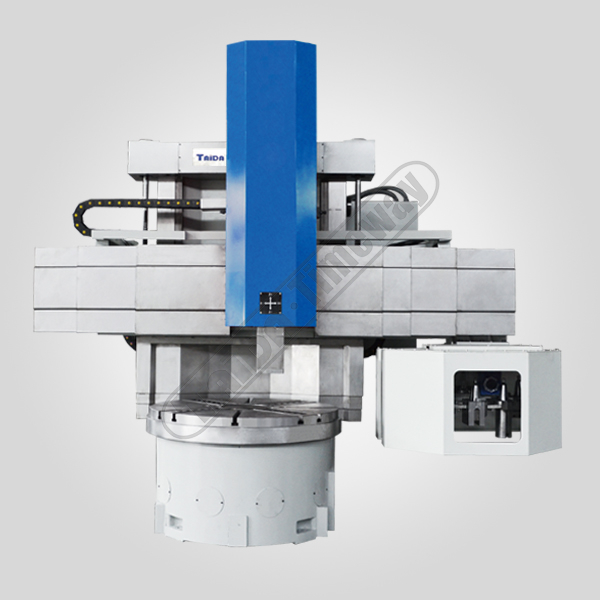

1. VK CNC single-column vertical turning center, equipped with FANUC 0i TF system, two-axis (X, Z) linkage, 12-station disc-type tool magazine, using ram to tool change. Suitable for carbide and ceramic tools, it can be used for high-speed machining of inner and outer cylindrical surfaces, inner and outer conical surfaces, planes, threads and circular arc surfaces of parts made of ferrous metals, non-ferrous metals and some non-metallic materials. |

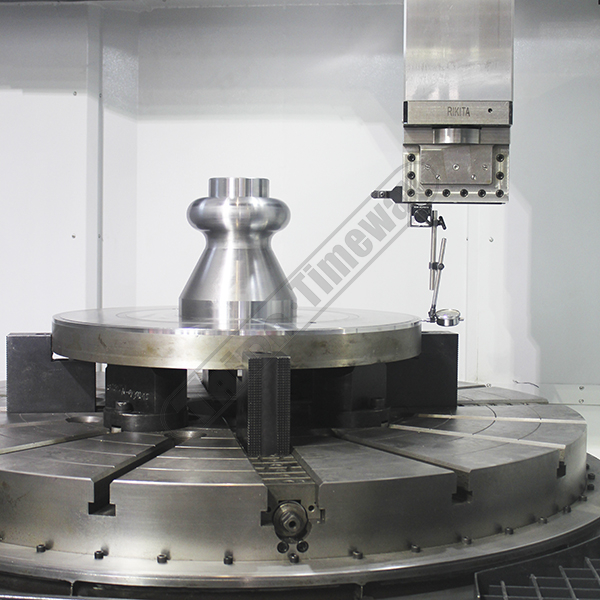

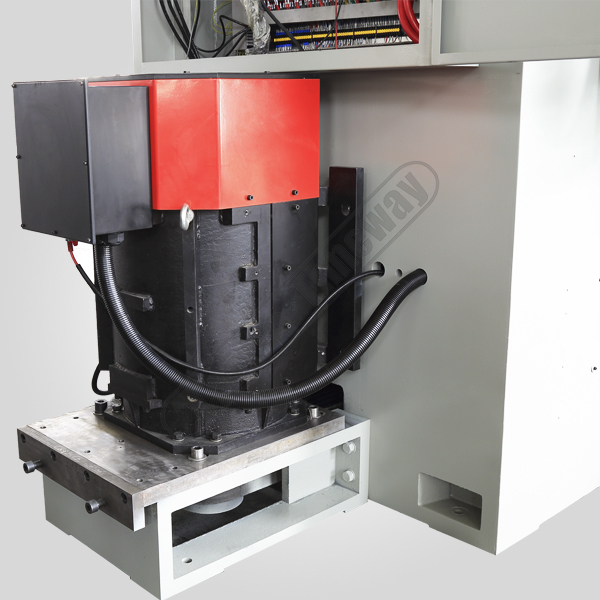

2. The main drive adopts double base speed spindle servo motor drive and servo control. The two-speed spindle servo drive system has closed-loop speed regulation in the whole speed range, with 1.5 times overload capability, and can output effective torque at zero speed. The main shaft bearing adopts a conical cross roller bearing structure, which has the characteristics of high precision, high rigidity, high load bearing, high speed and low friction. Therefore, the machine itself has high precision and rigidity of rotation. |
3. The X-axis and Z-axis servo motors and the ball screw are directly connected by a flexible coupling, and the guide rail is in the form of a sliding guide (hard rail). The linear coordinate adopts the imported grating ruler for position detection, thereby achieving full-closed control of two-axis linkage. |
4. The whole machine is equipped with a fully enclosed protective cover. The protective cover has the protection and collection function of iron filings and cooling. The protective cover has enough space to facilitate chip cleaning. |
Product Structure Characteristics: |
1. The electrical cabinet is directly installed on the beam, which saves the floor space of the machine tool and makes the structure of the machine more compact. The appearance of the switchboard is beautiful, the line number is clear and complete; the connection of the electrical cabinet to the bed is all connected by special cables; the air conditioner is equipped with air conditioner , safety standards, to ensure that the controller is thermostated, making the controller run more stable. |
2. Precision oil cooler: By cooling the hydraulic oil of the machine tool, it can prevent thermal deformation of the machine tool, stabilize oil pressure, prevent oil shock, improve machine tool machining accuracy, reduce mechanical work errors, and reduce machine tool maintenance costs. |
3. Automatic lubrication station: The guide rail and lead screw of the whole machine are centralized lubrication. The automatic lubrication station is used to control the lubrication points of the lubrication points through the control function of the electrical system, which makes the lubrication work easier and more convenient. |
4. Cross roller bearing characteristics: Provides the performance advantages of double row bearings in single row bearing space; has high anti-overturning torque capability; combines the compactness of single row bearings and the stability of double row bearings; takes up little space and works The height of the table is low, easy to operate; the working center of gravity is low, the centrifugal force is small; uniform heat conduction, low wear and long life. High rigidity, high precision, high vibration and easy lubrication. |

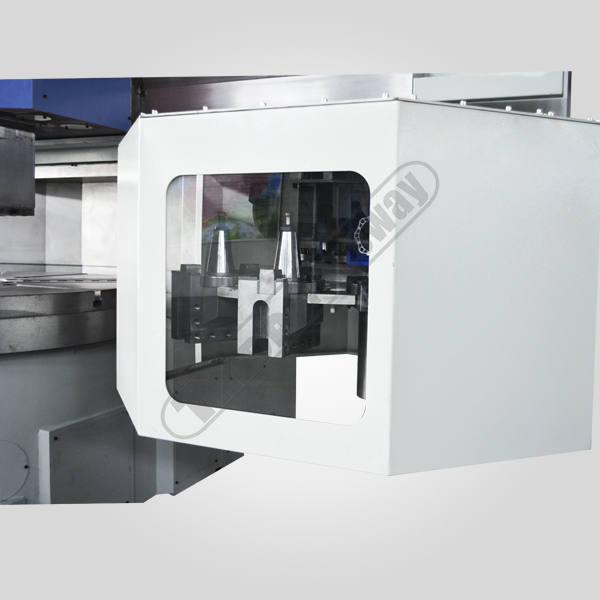

5. Derun brand 0820B: 12-station tool magazine design, convenient for diversified processing needs, fast and arbitrary direction to choose the knife, humanized control. The biggest advantage of this tool magazine is stable tool change, fast and accurate positioning, and large torque. The knives are equipped with a full sheet metal shield that is aesthetically pleasing and protects the holder of the knife holder and has a window that is glazed. |
6. Castings: All are made of high quality resin sand, high strength and high quality cast iron. The surface of the bed rail is quenched and the hardness reaches HRC45 or above. The stability is good, the strength is high, and the precision is stable and reliable. |
7. Screw: Precision double-nut ball screw is used to pre-tighten at both ends to eliminate the loss of precision caused by thermal elongation. |
8. Operator station: It is easy to operate with integrated rotatable and external handheld unit. |
9. Feeding system: high-precision AC synchronous servo motor is connected with the ball screw through the reducer and the flexible coupling, and the mature and stable structure realizes high-precision transmission and control. |
Product Introduction: |
1. VK CNC single-column vertical turning center, equipped with FANUC 0i TF system, two-axis (X, Z) linkage, 12-station disc-type tool magazine, using ram to tool change. Suitable for carbide and ceramic tools, it can be used for high-speed machining of inner and outer cylindrical surfaces, inner and outer conical surfaces, planes, threads and circular arc surfaces of parts made of ferrous metals, non-ferrous metals and some non-metallic materials. |
2. The main drive adopts double base speed spindle servo motor drive and servo control. The two-speed spindle servo drive system has closed-loop speed regulation in the whole speed range, with 1.5 times overload capability, and can output effective torque at zero speed. The main shaft bearing adopts a conical cross roller bearing structure, which has the characteristics of high precision, high rigidity, high load bearing, high speed and low friction. Therefore, the machine itself has high precision and rigidity of rotation. |
3. The X-axis and Z-axis servo motors and the ball screw are directly connected by a flexible coupling, and the guide rail is in the form of a sliding guide (hard rail). The linear coordinate adopts the imported grating ruler for position detection, thereby achieving full-closed control of two-axis linkage. |
4. The whole machine is equipped with a fully enclosed protective cover. The protective cover has the protection and collection function of iron filings and cooling. The protective cover has enough space to facilitate chip cleaning. |
Product Structure Characteristics: |
1. The electrical cabinet is directly installed on the beam, which saves the floor space of the machine tool and makes the structure of the machine more compact. The appearance of the switchboard is beautiful, the line number is clear and complete; the connection of the electrical cabinet to the bed is all connected by special cables; the air conditioner is equipped with air conditioner , safety standards, to ensure that the controller is thermostated, making the controller run more stable. |
2. Precision oil cooler: By cooling the hydraulic oil of the machine tool, it can prevent thermal deformation of the machine tool, stabilize oil pressure, prevent oil shock, improve machine tool machining accuracy, reduce mechanical work errors, and reduce machine tool maintenance costs. |
3. Automatic lubrication station: The guide rail and lead screw of the whole machine are centralized lubrication. The automatic lubrication station is used to control the lubrication points of the lubrication points through the control function of the electrical system, which makes the lubrication work easier and more convenient. |
4. Cross roller bearing characteristics: Provides the performance advantages of double row bearings in single row bearing space; has high anti-overturning torque capability; combines the compactness of single row bearings and the stability of double row bearings; takes up little space and works The height of the table is low, easy to operate; the working center of gravity is low, the centrifugal force is small; uniform heat conduction, low wear and long life. High rigidity, high precision, high vibration and easy lubrication. |
5. Derun brand 0820B: 12-station tool magazine design, convenient for diversified processing needs, fast and arbitrary direction to choose the knife, humanized control. The biggest advantage of this tool magazine is stable tool change, fast and accurate positioning, and large torque. The knives are equipped with a full sheet metal shield that is aesthetically pleasing and protects the holder of the knife holder and has a window that is glazed. |
6. Castings: All are made of high quality resin sand, high strength and high quality cast iron. The surface of the bed rail is quenched and the hardness reaches HRC45 or above. The stability is good, the strength is high, and the precision is stable and reliable. |
7. Screw: Precision double-nut ball screw is used to pre-tighten at both ends to eliminate the loss of precision caused by thermal elongation. |
8. Operator station: It is easy to operate with integrated rotatable and external handheld unit. |
9. Feeding system: high-precision AC synchronous servo motor is connected with the ball screw through the reducer and the flexible coupling, and the mature and stable structure realizes high-precision transmission and control. |
Technical parameter: | ||||
Specifications | Unit | VK1250 | VK1600 | VK2000 |
Max. swing diameter | mm | 1400 | 1650 | 2050 |
Max. turning diameter | mm | 1250 | 1600 | 2000 |
Max. height of workpiece | mm | 1000/1250/1400 | 1000/1250/1400 | 1250/1400/1600 |
Max. weight of workpiece | kg | 5000 | 8000 | 12000 |
Chuck diameter | mm | 1200 | 1450 | 1800 |
Max. torque of spindle | KN.m | 6 | 10 | 12.5 |
Spindle speed steps | - | 2gears, stepless | 2gears, stepless | 2gears, stepless |
Spindle speed range | rpm | 5~500 | 5~315 | 5-250 |
Vertical tool post max. cutting force | KN | 16 | 20 | 20 |
Size of tool shank | mm | 20/32/40 | 20/32/40 | 20/32/40 |
X/Z-axis feed speed steps | steps | stepless | stepless | stepless |
X/Z-axis feed speed | mm/min | 0.1-1000 | 0.1-1000 | 0.1-1000 |
X/Z-axis rapid feed speed | mm/min | 6000 | 6000 | 6000 |
X-axis travel | mm | -100~800 | -100~1000 | -100~1250 |
Z-axis travel | mm | 650/800 | 800/1000 | 800/1000 |
Max. travel of beam | mm | 650/900/1050 | 650/900/1050 | 900/1050/1250 |
Lifting speed of beam | mm/min | 440 | 440 | 440 |
Main motor power | kw | S1: 25, S2: 30 | S1: 30, S2: 37 | S1: 35, S2: 45 |
Beam lifting motor power | kw | 5.5 | 5.5 | 5.5 |
X/Z-axis motor torque | Nm | 20 | 20 | 27/20 |
Ram sectional size | mm | 200x200 | 200x200 | 215x350 |
X/Z-axis guideway type | - | Sliding | Sliding | Sliding |
Worktable guideway type | - | Taper rolling rail | Taper rolling rail | Taper rolling rail |
X/Z-axis positioning accuracy | mm | 0.02/1000 | 0.02/1000 | 0.02/1000 |
X/Z-axis repeated positioning accuracy | mm | 0.015/1000 | 0.015/1000 | 0.015/1000 |
Machine dimensions (LxWxH) | mm | 4550x4310x3920 | 5150x4395x4285 | 5950x4795x4285 |
Machine weight | kg | 12500 | 17000 | 20000 |
Technical parameter: | ||||
Specifications | Unit | VK1250 | VK1600 | VK2000 |
Max. swing diameter | mm | 1400 | 1650 | 2050 |
Max. turning diameter | mm | 1250 | 1600 | 2000 |
Max. height of workpiece | mm | 1000/1250/1400 | 1000/1250/1400 | 1250/1400/1600 |
Max. weight of workpiece | kg | 5000 | 8000 | 12000 |
Chuck diameter | mm | 1200 | 1450 | 1800 |
Max. torque of spindle | KN.m | 6 | 10 | 12.5 |
Spindle speed steps | - | 2gears, stepless | 2gears, stepless | 2gears, stepless |
Spindle speed range | rpm | 5~500 | 5~315 | 5-250 |
Vertical tool post max. cutting force | KN | 16 | 20 | 20 |
Size of tool shank | mm | 20/32/40 | 20/32/40 | 20/32/40 |
X/Z-axis feed speed steps | steps | stepless | stepless | stepless |
X/Z-axis feed speed | mm/min | 0.1-1000 | 0.1-1000 | 0.1-1000 |
X/Z-axis rapid feed speed | mm/min | 6000 | 6000 | 6000 |
X-axis travel | mm | -100~800 | -100~1000 | -100~1250 |
Z-axis travel | mm | 650/800 | 800/1000 | 800/1000 |
Max. travel of beam | mm | 650/900/1050 | 650/900/1050 | 900/1050/1250 |
Lifting speed of beam | mm/min | 440 | 440 | 440 |
Main motor power | kw | S1: 25, S2: 30 | S1: 30, S2: 37 | S1: 35, S2: 45 |
Beam lifting motor power | kw | 5.5 | 5.5 | 5.5 |
X/Z-axis motor torque | Nm | 20 | 20 | 27/20 |
Ram sectional size | mm | 200x200 | 200x200 | 215x350 |
X/Z-axis guideway type | - | Sliding | Sliding | Sliding |
Worktable guideway type | - | Taper rolling rail | Taper rolling rail | Taper rolling rail |
X/Z-axis positioning accuracy | mm | 0.02/1000 | 0.02/1000 | 0.02/1000 |
X/Z-axis repeated positioning accuracy | mm | 0.015/1000 | 0.015/1000 | 0.015/1000 |
Machine dimensions (LxWxH) | mm | 4550x4310x3920 | 5150x4395x4285 | 5950x4795x4285 |
Machine weight | kg | 12500 | 17000 | 20000 |
1. FANUC 0i TF CNC system and servo motor
2. Taiwan HIWIN ball-screw
3. German Schneider electric components
4. USA TIMKEN tapered cross roller bearing
5. Taiwan reducer
6. Double base speed main drive servo motor with ZF reducer function
7. Taiwan 12-stations disc-type ATC
8. China famous brand lubrication system
9. FANUC spindle encoder
10. Oil cooler
11. Air conditioner
12. Full-closed guard, chip conveyor and cooling system
13. China famous brand rail guard and drag chain
1. FANUC 0i TF CNC system and servo motor
2. Taiwan HIWIN ball-screw
3. German Schneider electric components
4. USA TIMKEN tapered cross roller bearing
5. Taiwan reducer
6. Double base speed main drive servo motor with ZF reducer function
7. Taiwan 12-stations disc-type ATC
8. China famous brand lubrication system
9. FANUC spindle encoder
10. Oil cooler
11. Air conditioner
12. Full-closed guard, chip conveyor and cooling system
13. China famous brand rail guard and drag chain
1. German HEIDENHAIN grating ruler (X/Z-axis)
1. German HEIDENHAIN grating ruler (X/Z-axis)
