Turning Diameter: | |
---|---|
Hydraulic chuck: | |
Workpiece height: | |
Spindle Speed: | |
Availability: | |
Quantity: | |

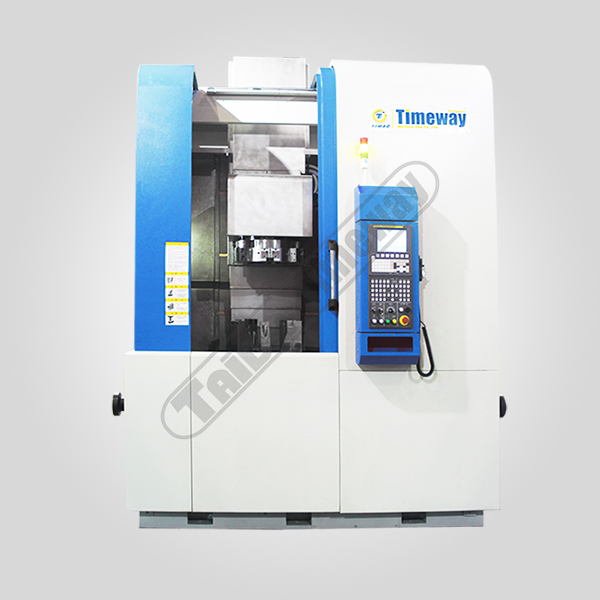

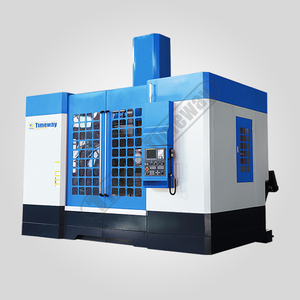

VK500
Taida Timeway
Product Structure Characteristics:

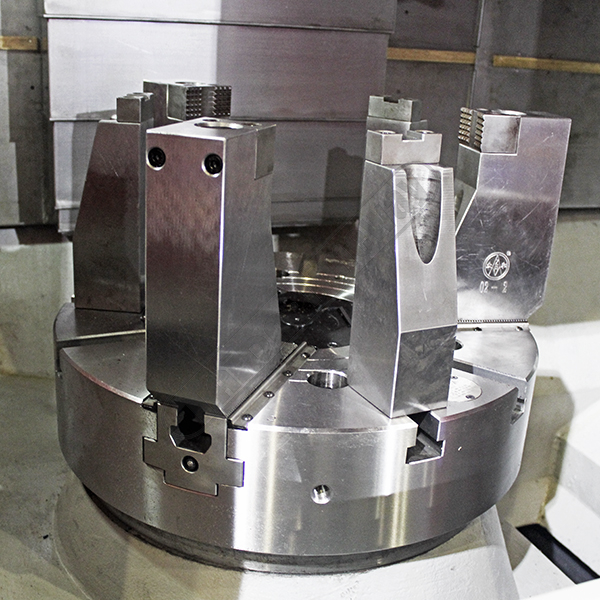

1. Adopting Taiwan hydraulic chuck, the positioning accuracy is high and the stability is good. At the same time, the labor intensity of the operator is reduced, the clamping time of the workers is reduced, and the labor production efficiency is improved.
2. Using Taiwan's high-performance spindle, the spindle connection surface through Taiwan scraping technology, using the form of surface contact, different from other manufacturers' point contact and line contact.
3. Taiwan eight-station knife holder or vertical electric turret.
4. Taiwan ball screw and Taiwan electrical components.
5. The unique closed protective cover of the whole machine can effectively prevent the coolant from splashing when the chips are cut, thus achieving the purpose of environmental protection.
Main Structure:
1. The main drive system is driven by a double-base speed main drive servo motor with ZF reducer function. This series of machine tools has a two-speed function, the low-speed gear has a low-speed and heavy-duty cutting capacity; the high-speed gear can realize the advantages of high-speed light-load cutting and small roughing.
2. The transmission system adopts a combined narrow V-belt drive, and the motor is directly connected to the main shaft, which reduces the influence of the intermediate link on speed and accuracy, and at the same time can achieve the advantage of smoothing excessive.
3. The beam adopts the box-shaped structure and the rational design of the ribs arranged reasonably, so that the requirements of good stability, high strength and high rigidity are achieved. The cross-rail surface of the beam adopts the fine grinding process, which can effectively ensure the linearity of the linear guide for the connection surface.

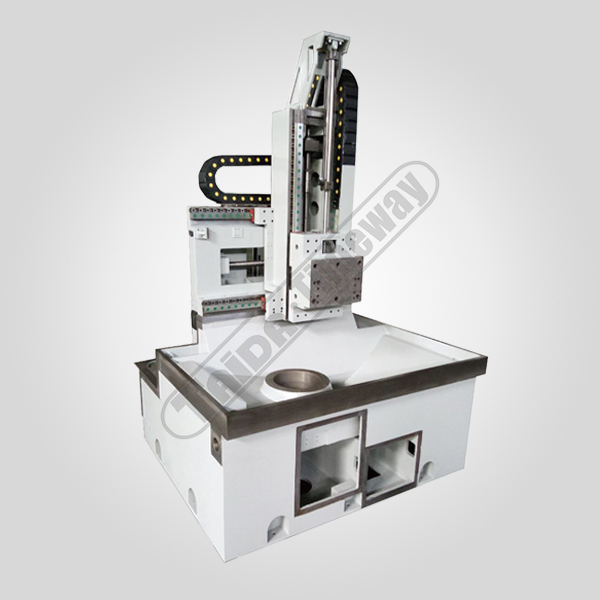

4. The base adopts a unique integrated design to improve the overall strength of the machine; high-strength, high-rigidity casting materials improve the stability of the machine tool and absorb vibration effectively. The spindle encoder is mounted on the base spindle position to achieve constant linear speed cutting.
5. Hydraulic chuck hydraulic clamping mechanism, simple and easy to clamp, can achieve correct adjustment of clamping force, improve stability and reliability. Hydraulic chuck is an important part of automated manufacturing, an inevitable trend of enterprise development.

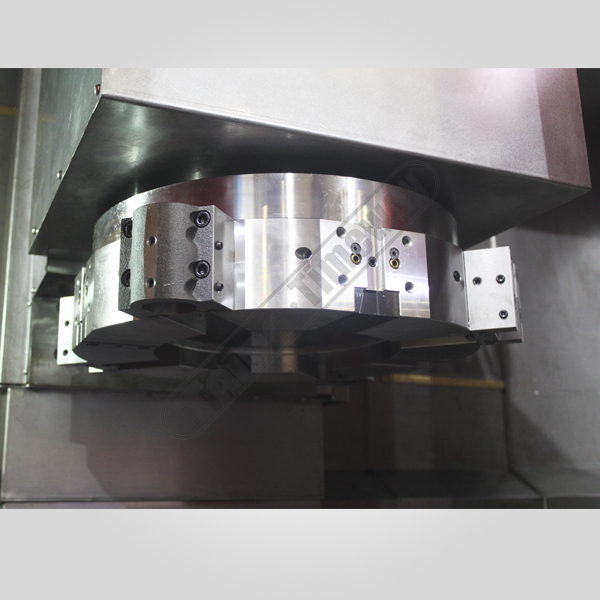

6. The tool holder adopts Taiwan horizontal eight-station tool holder, and the tool holder adopts hydraulic method to change the knife, which has the advantages of accurate tool change and fast tool change speed. The tool holder can hold 8 tools at a time, while meeting the needs of production. Or vertical five-station electric knife holder with high precision and good rigidity.

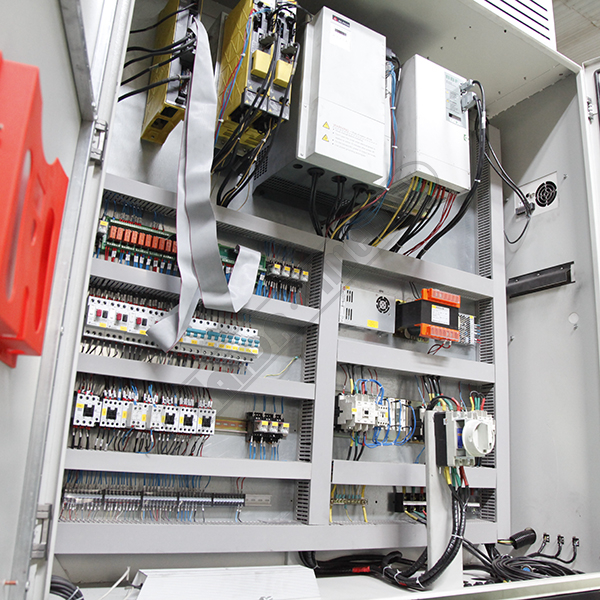

7. The electrical cabinet is directly installed on the beam, which saves the floor space of the machine tool and makes the structure of the machine more compact. The appearance of the switchboard is beautiful, the line number is clear and complete; the connection of the electrical cabinet to the bed is all connected by special cables; the air conditioner is equipped with air conditioner , safety standards, to ensure that the controller is thermostated, making the controller run more stable.
Product Structure Characteristics:
1. Adopting Taiwan hydraulic chuck, the positioning accuracy is high and the stability is good. At the same time, the labor intensity of the operator is reduced, the clamping time of the workers is reduced, and the labor production efficiency is improved.
2. Using Taiwan's high-performance spindle, the spindle connection surface through Taiwan scraping technology, using the form of surface contact, different from other manufacturers' point contact and line contact.
3. Taiwan eight-station knife holder or vertical electric turret.
4. Taiwan ball screw and Taiwan electrical components.
5. The unique closed protective cover of the whole machine can effectively prevent the coolant from splashing when the chips are cut, thus achieving the purpose of environmental protection.
Main Structure:
1. The main drive system is driven by a double-base speed main drive servo motor with ZF reducer function. This series of machine tools has a two-speed function, the low-speed gear has a low-speed and heavy-duty cutting capacity; the high-speed gear can realize the advantages of high-speed light-load cutting and small roughing.
2. The transmission system adopts a combined narrow V-belt drive, and the motor is directly connected to the main shaft, which reduces the influence of the intermediate link on speed and accuracy, and at the same time can achieve the advantage of smoothing excessive.
3. The beam adopts the box-shaped structure and the rational design of the ribs arranged reasonably, so that the requirements of good stability, high strength and high rigidity are achieved. The cross-rail surface of the beam adopts the fine grinding process, which can effectively ensure the linearity of the linear guide for the connection surface.
4. The base adopts a unique integrated design to improve the overall strength of the machine; high-strength, high-rigidity casting materials improve the stability of the machine tool and absorb vibration effectively. The spindle encoder is mounted on the base spindle position to achieve constant linear speed cutting.
5. Hydraulic chuck hydraulic clamping mechanism, simple and easy to clamp, can achieve correct adjustment of clamping force, improve stability and reliability. Hydraulic chuck is an important part of automated manufacturing, an inevitable trend of enterprise development.
6. The tool holder adopts Taiwan horizontal eight-station tool holder, and the tool holder adopts hydraulic method to change the knife, which has the advantages of accurate tool change and fast tool change speed. The tool holder can hold 8 tools at a time, while meeting the needs of production. Or vertical five-station electric knife holder with high precision and good rigidity.
7. The electrical cabinet is directly installed on the beam, which saves the floor space of the machine tool and makes the structure of the machine more compact. The appearance of the switchboard is beautiful, the line number is clear and complete; the connection of the electrical cabinet to the bed is all connected by special cables; the air conditioner is equipped with air conditioner , safety standards, to ensure that the controller is thermostated, making the controller run more stable.
Specifications | Unit | VK500 | VK600 | VK800 |
Max. swing diameter | mm | 500 | 800 | 1000 |
Max. turning diameter | mm | 400 | 600 | 800 |
Max. height of workpiece | mm | 480 | 700 | 800 |
Chuck diameter (hydraulic) | mm | 325(12") | 530(21") | 610(24") |
Spindle nose | - | A2-8 | A2-11 | A2-11 |
Spindle bearing diameter | mm | 160 | 180 | 180 |
Spindle speed steps | - | 2gears, stepless | 2gears, stepless | 2gears, stepless |
Spindle speed range | rpm | 50-2200 | 50-1800 | 50-1000 |
Worktable torque | N.m | 500 | 840 | 2200 |
X-axis rapid feed speed | mm/min | 10000 | 10000 | 10000 |
X-axis feed speed | mm/min | 0.1-1000 | 0.1-1000 | 0.1-1000 |
Z-axis rapid feed speed | mm/min | 15000 | 15000 | 15000 |
Z-axis feed speed | mm/min | 0.1-1000 | 0.1-1000 | 0.1-1000 |
Min. feed unit | mm | 0.001 | 0.001 | 0.001 |
X-axis travel | mm | -50~250 | -50~650 | 800 |
Z-axis travel | mm | 500 | 625 | 850 |
Turret type | - | Horizontal 8 | Horizontal 8 | Horizontal 8 |
Size of tool shank | mm | 25x25; Φ40 | 25x25; Φ40 | 32x32; Φ50 |
Main motor power | kw | 15/18.5 | 22/26 | 30/37 |
X-axis servo motor power | kw | 1.8 | 3 | 4.2 |
Z-axis servo motor power | kw | 3 | 3 | 3 |
Cooling pump power | kw | 0.75 | 0.75 | 0.75 |
Machine dimensions (LxWxH) | cm | 236x297x315 | 335x280x342 | 296x392x367 |
Machine weight | kg | 11000 | 13000 | 15000 |
Machining accuracy | um | IT6 | IT6-IT7 | IT6-IT7 |
X/Z-axis positioning accuracy | mm | 0.012/0.015 | 0.018/0.02 | 0.018/0.02 |
X/Z-axis repeated positioning accuracy | mm | 0.006/0.008 | 0.006/0.008 | 0.0075/0.015 |
Roughness | um | Ra1.6 | Ra1.6 | Ra1.6 |
Specifications | Unit | VK500 | VK600 | VK800 |
Max. swing diameter | mm | 500 | 800 | 1000 |
Max. turning diameter | mm | 400 | 600 | 800 |
Max. height of workpiece | mm | 480 | 700 | 800 |
Chuck diameter (hydraulic) | mm | 325(12") | 530(21") | 610(24") |
Spindle nose | - | A2-8 | A2-11 | A2-11 |
Spindle bearing diameter | mm | 160 | 180 | 180 |
Spindle speed steps | - | 2gears, stepless | 2gears, stepless | 2gears, stepless |
Spindle speed range | rpm | 50-2200 | 50-1800 | 50-1000 |
Worktable torque | N.m | 500 | 840 | 2200 |
X-axis rapid feed speed | mm/min | 10000 | 10000 | 10000 |
X-axis feed speed | mm/min | 0.1-1000 | 0.1-1000 | 0.1-1000 |
Z-axis rapid feed speed | mm/min | 15000 | 15000 | 15000 |
Z-axis feed speed | mm/min | 0.1-1000 | 0.1-1000 | 0.1-1000 |
Min. feed unit | mm | 0.001 | 0.001 | 0.001 |
X-axis travel | mm | -50~250 | -50~650 | 800 |
Z-axis travel | mm | 500 | 625 | 850 |
Turret type | - | Horizontal 8 | Horizontal 8 | Horizontal 8 |
Size of tool shank | mm | 25x25; Φ40 | 25x25; Φ40 | 32x32; Φ50 |
Main motor power | kw | 15/18.5 | 22/26 | 30/37 |
X-axis servo motor power | kw | 1.8 | 3 | 4.2 |
Z-axis servo motor power | kw | 3 | 3 | 3 |
Cooling pump power | kw | 0.75 | 0.75 | 0.75 |
Machine dimensions (LxWxH) | cm | 236x297x315 | 335x280x342 | 296x392x367 |
Machine weight | kg | 11000 | 13000 | 15000 |
Machining accuracy | um | IT6 | IT6-IT7 | IT6-IT7 |
X/Z-axis positioning accuracy | mm | 0.012/0.015 | 0.018/0.02 | 0.018/0.02 |
X/Z-axis repeated positioning accuracy | mm | 0.006/0.008 | 0.006/0.008 | 0.0075/0.015 |
Roughness | um | Ra1.6 | Ra1.6 | Ra1.6 |
Standard Configurations:

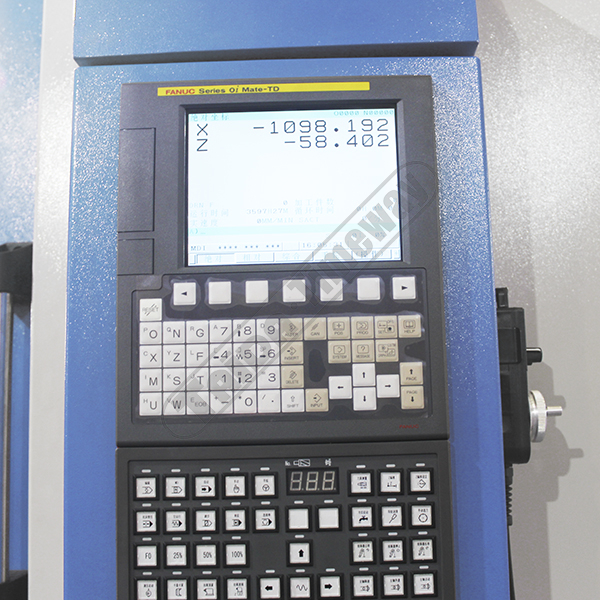

1. FANUC 0i TF CNC system
2. Japan NSK bearings
3. Taiwan integrated spindle
4. Taiwan hydraulic chuck
5. Taiwan horizontal eight-stations turret
6. Taiwan ball-screw
7. Taiwan linear rails
8. Taiwan electric components
9. Double base speed main drive servo motor with ZF reducer function
10. CDD spindle encoder
11. Oil cooler and air conditioner
12. Full-closed guard, chip conveyor and cooling system
13. China famous brand rail guard and drag chain
14. 350mm spindle supporting diameter
Standard Configurations:
1. FANUC 0i TF CNC system
2. Japan NSK bearings
3. Taiwan integrated spindle
4. Taiwan hydraulic chuck
5. Taiwan horizontal eight-stations turret
6. Taiwan ball-screw
7. Taiwan linear rails
8. Taiwan electric components
9. Double base speed main drive servo motor with ZF reducer function
10. CDD spindle encoder
11. Oil cooler and air conditioner
12. Full-closed guard, chip conveyor and cooling system
13. China famous brand rail guard and drag chain
14. 350mm spindle supporting diameter
Optional Accessories:
1. German HEIDENHAIN grating ruler (X/Z-axis)
2. Vertical turret
Optional Accessories:
1. German HEIDENHAIN grating ruler (X/Z-axis)
2. Vertical turret
