Turning Diameter: | |
---|---|
Centers Distance: | |
Bed Width: | |
Loading Capacity: | |
Spindle Speed: | |
Availability: | |
Quantity: | |

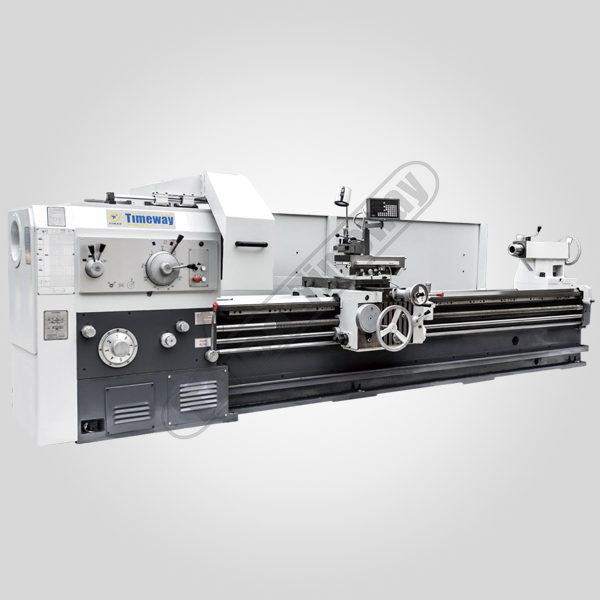

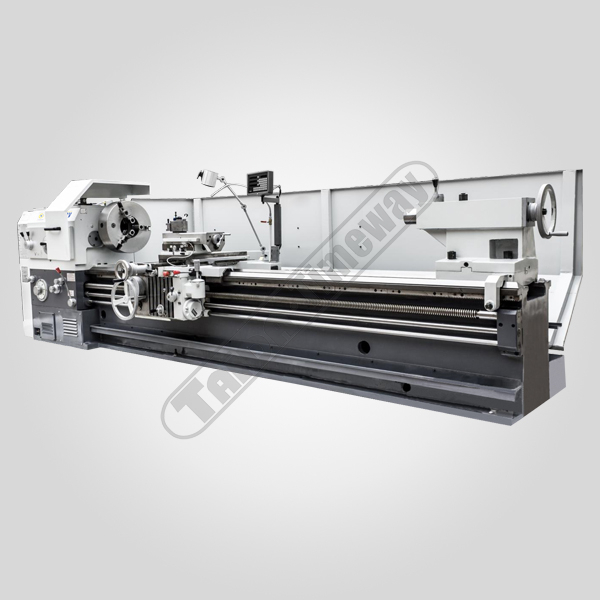

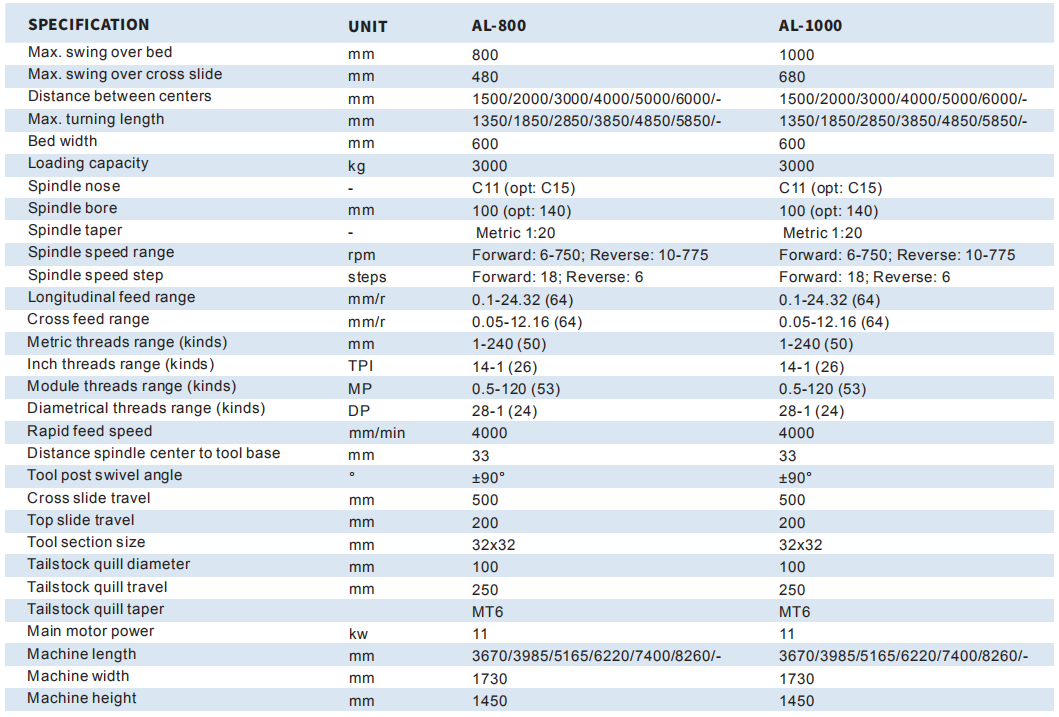

AL-800
Taida Timeway
Features:
These lathes are suitable for turning inner and outer cylindrical surfaces, conical surfaces and other rotating parts. They can process all kinds of commonly used metric, inch, modulus and radial threads, and can cut oil grooves and keyways.
The machine is solid body, strong in rigidity, high in power, wide in speed range, and capable of high-speed and powerful cutting; When finished, the roundness error is not more than 0.01mm, the cylindrical degree error is not more than 0.03mm in the measuring length of 300mm.
It is suitable for stable and strong cutting of large and medium-sized parts such as castings, rigid parts and non-ferrous metals.
The bed is made of cast structural bed. The internal ribs have a reasonable layout and high rigidity, and the guide rail adopts an intermediate frequency quenching grinding process. On the sliding guide surface, the anti-crawling guide plate technology is adopted, and the dynamic characteristics such as the friction damping coefficient are in an optimal state, thereby avoiding the occurrence of low- speed crawling.

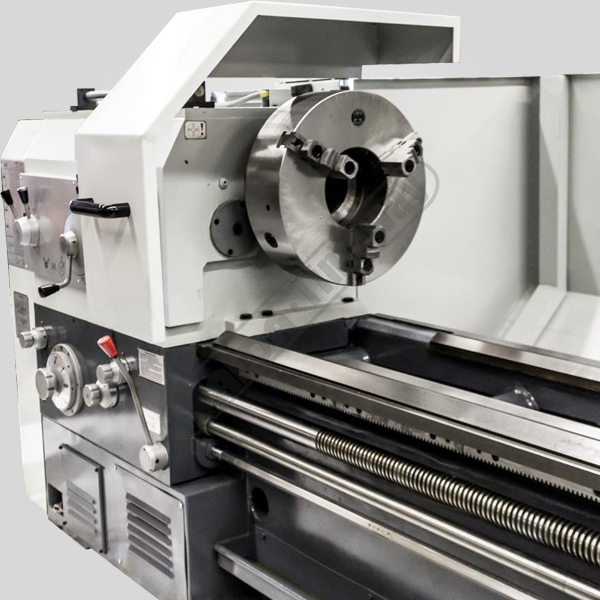

The machine spindle bearing adopts famous brand products. The spindle box adopts a symmetrical structure to make the thermal deformation uniform and avoid the offset of the center of the spindle. To reduce thermal deformation, the headstock is lubricated with an oil bath cycle. The front end of the main shaft adopts a three-support structure of a two-raw angular contact ball bearing, improving accuracy and increasing rigidity. The gears in the headstock are quenched and grounded to ensure accurate transmission and low noise. The well-assembled spindle has the characteristics of low temperature rise, small thermal deformation and high precision, which makes the spindle maintain relatively stable accuracy during long-term operation.
High rigidity one-piece type bed with 600mm bed span, which ensures the machine has strong stability and high precision, and loading capacity between centers can be up to 3000kg.
Spindle standard through hole diameter Ф100mm, can be Ф140mm as optional; For machining a wide variety of workpieces, the machine has a speed range of 6-775rpm with 24 speeds.

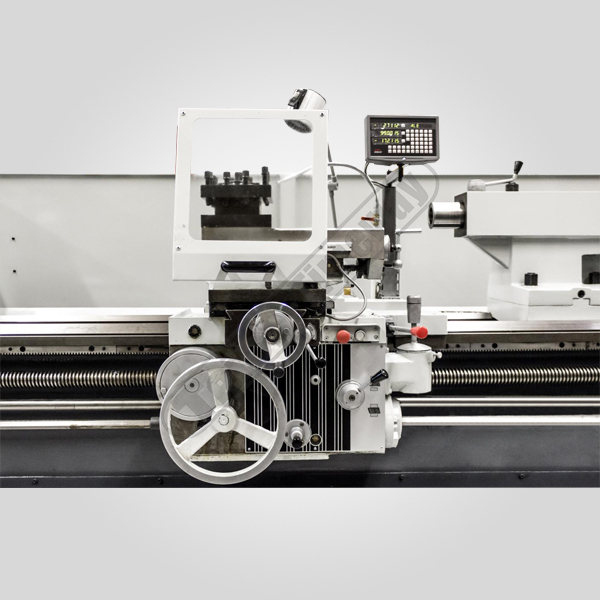

Top slide can turn short cone by automatic feed or by hand, top slide and longitudinal feed ae combined can turn the long conical surface.
Features:
These lathes are suitable for turning inner and outer cylindrical surfaces, conical surfaces and other rotating parts. They can process all kinds of commonly used metric, inch, modulus and radial threads, and can cut oil grooves and keyways.
The machine is solid body, strong in rigidity, high in power, wide in speed range, and capable of high-speed and powerful cutting; When finished, the roundness error is not more than 0.01mm, the cylindrical degree error is not more than 0.03mm in the measuring length of 300mm.
It is suitable for stable and strong cutting of large and medium-sized parts such as castings, rigid parts and non-ferrous metals.
The bed is made of cast structural bed. The internal ribs have a reasonable layout and high rigidity, and the guide rail adopts an intermediate frequency quenching grinding process. On the sliding guide surface, the anti-crawling guide plate technology is adopted, and the dynamic characteristics such as the friction damping coefficient are in an optimal state, thereby avoiding the occurrence of low- speed crawling.
The machine spindle bearing adopts famous brand products. The spindle box adopts a symmetrical structure to make the thermal deformation uniform and avoid the offset of the center of the spindle. To reduce thermal deformation, the headstock is lubricated with an oil bath cycle. The front end of the main shaft adopts a three-support structure of a two-raw angular contact ball bearing, improving accuracy and increasing rigidity. The gears in the headstock are quenched and grounded to ensure accurate transmission and low noise. The well-assembled spindle has the characteristics of low temperature rise, small thermal deformation and high precision, which makes the spindle maintain relatively stable accuracy during long-term operation.
High rigidity one-piece type bed with 600mm bed span, which ensures the machine has strong stability and high precision, and loading capacity between centers can be up to 3000kg.
Spindle standard through hole diameter Ф100mm, can be Ф140mm as optional; For machining a wide variety of workpieces, the machine has a speed range of 6-775rpm with 24 speeds.
Top slide can turn short cone by automatic feed or by hand, top slide and longitudinal feed ae combined can turn the long conical surface.
Standard Accessories:
3-jaw chuck
Steady rest (over 2M length)
Follow rest
Manual moving tailstock
Dead center
4-station tool post
Cooling system
Work lamp
Tools & tool-box
Leveling wedge and bolts
Operation manual (English)
Standard Accessories:
3-jaw chuck
Steady rest (over 2M length)
Follow rest
Manual moving tailstock
Dead center
4-station tool post
Cooling system
Work lamp
Tools & tool-box
Leveling wedge and bolts
Operation manual (English)
Optional Accessories:
4-jaw independent chuck
Face plate
2 or 3-axis DRO
Chuck guard
Tool-post guard
Rear splash guard
Quick changing tool post
Grinding attachment
Optional Accessories:
4-jaw independent chuck
Face plate
2 or 3-axis DRO
Chuck guard
Tool-post guard
Rear splash guard
Quick changing tool post
Grinding attachment
