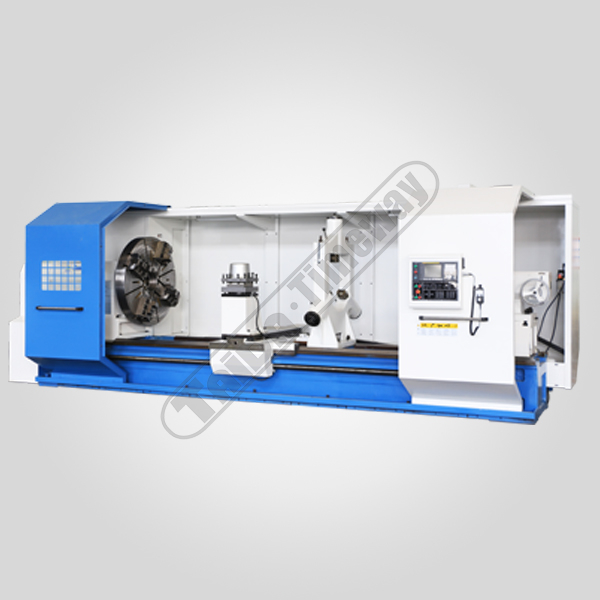

AK-1600C
Taida Timeway
Features:
This series lathe bed is the one-piece type box-shaped structure, adopts high standard cast iron (HT300) one molding casting, after the second aging treatment, it has the feature of stable performance; guide way width (970mm), good rigidity, anti-vibration ability; spindle bore is 130mm, strong rigidity of headstock, adapting to heavy cutting.
Automatic shift exchange controlled by the M code, stepless speed change within shift is controlled by the S code, achieving stepless speed and constant linear cutting (optional: spindle speed changed by manual, can be 21 speeds).
The X-direction and Z-direction use the precision grinding grade ball screw, ensured a high processing accuracy, positioning accuracy and repositioning accuracy.
Longitudinal (Z) Feeding: for 1000mm-5000mm, AC servo motor that installed on the left side of the feeding box drives the ball screw via high precision planetary reducer, for longer than 6000mm, it is the rack and pinion structure.

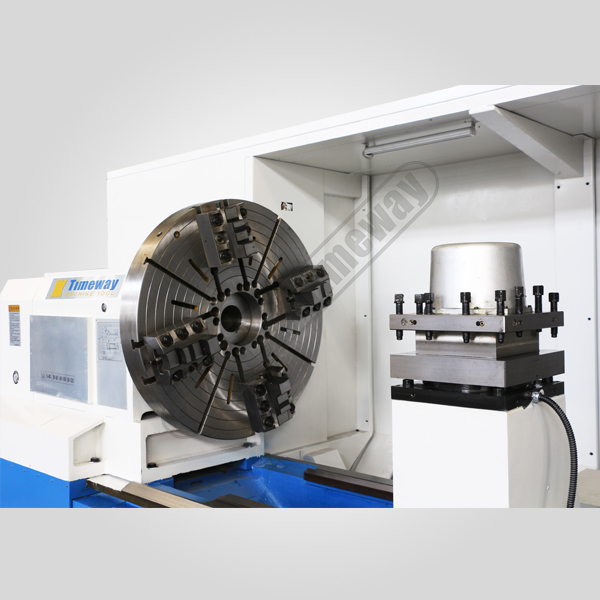

Equipped with 4-station vertical electric turret, but also according to their customers’ needs 6-station horizontal electric turret and 8-position horizontal electric turret can be chosen.

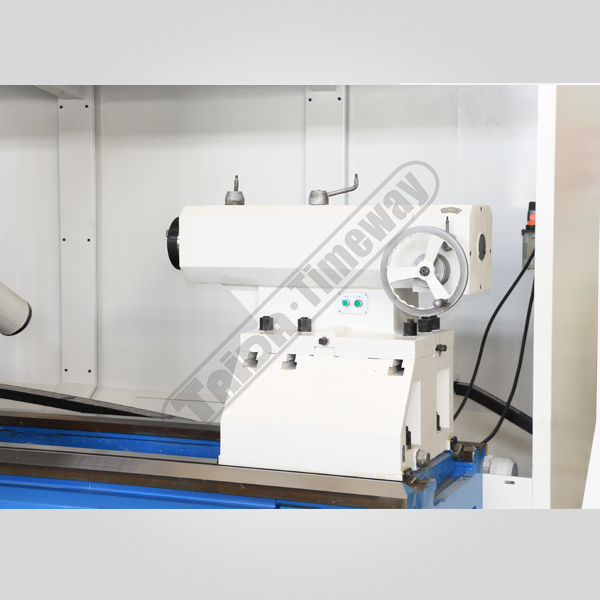

Tailstock structure is strong, which can perform heavy cutting, it can also be chosen electric tailstock to achieve automatic rapid movement and improve efficiency.
Spindle motor adopts α servo motor or 30kw high-power AC variable frequency main motor with frequency converter, the output is large and variable speed range is wide. Equipped with Ф1250mm standard manual four-jaw chuck.
Equipped with emergency stop safety button, when the lathe machine suddenly encountered a sudden power failure or other failures, due to the special design of the control circuit, it can be self-protection to ensure that the lathe machine and staff safety.
Before delivery all lathe machines should be tested by British RENISHAW laser detector for dynamic accuracy detection and compensation, so the lathe machine has a high positioning accuracy and repeat positioning accuracy.

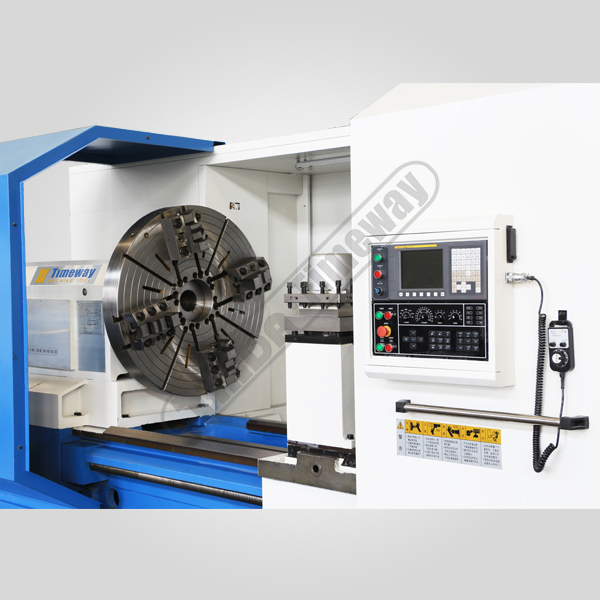

CNC system uses the most well-known international FANUC or SIEMENS control system (also available matching other systems according to user requirements). Programs and parameters can be transferred through USB interface. X-axis and Z-axis are controlled at the same time, it has a straight line, arc and thread interpolation and a variety of other fixed cycle and other functions, the minimum resolution is 0.001mm.
Features:
This series lathe bed is the one-piece type box-shaped structure, adopts high standard cast iron (HT300) one molding casting, after the second aging treatment, it has the feature of stable performance; guide way width (970mm), good rigidity, anti-vibration ability; spindle bore is 130mm, strong rigidity of headstock, adapting to heavy cutting.
Automatic shift exchange controlled by the M code, stepless speed change within shift is controlled by the S code, achieving stepless speed and constant linear cutting (optional: spindle speed changed by manual, can be 21 speeds).
The X-direction and Z-direction use the precision grinding grade ball screw, ensured a high processing accuracy, positioning accuracy and repositioning accuracy.
Longitudinal (Z) Feeding: for 1000mm-5000mm, AC servo motor that installed on the left side of the feeding box drives the ball screw via high precision planetary reducer, for longer than 6000mm, it is the rack and pinion structure.
Equipped with 4-station vertical electric turret, but also according to their customers’ needs 6-station horizontal electric turret and 8-position horizontal electric turret can be chosen.
Tailstock structure is strong, which can perform heavy cutting, it can also be chosen electric tailstock to achieve automatic rapid movement and improve efficiency.
Spindle motor adopts α servo motor or 30kw high-power AC variable frequency main motor with frequency converter, the output is large and variable speed range is wide. Equipped with Ф1250mm standard manual four-jaw chuck.
Equipped with emergency stop safety button, when the lathe machine suddenly encountered a sudden power failure or other failures, due to the special design of the control circuit, it can be self-protection to ensure that the lathe machine and staff safety.
Before delivery all lathe machines should be tested by British RENISHAW laser detector for dynamic accuracy detection and compensation, so the lathe machine has a high positioning accuracy and repeat positioning accuracy.
CNC system uses the most well-known international FANUC or SIEMENS control system (also available matching other systems according to user requirements). Programs and parameters can be transferred through USB interface. X-axis and Z-axis are controlled at the same time, it has a straight line, arc and thread interpolation and a variety of other fixed cycle and other functions, the minimum resolution is 0.001mm.
Specification | Unit | AK-1250C | AK-1400C | AK-1600C | AK-1800C |
Max. swing over bed | mm | 1250 | 1400 | 1600 | 1800 |
Max.. swing over cross slide | mm | 880 | 1010 | 1210 | 1210 |
Distance between centers | mm | 3000/4000/5000/6000/8000/10000/12000/- | |||
Max. turning length | mm | 2800/3800/4800/5800/7800/9800/11800/- | |||
Bed width | mm | 970 | 970 | 970 | 970 |
Loading capacity | kg | 10000 (opt: 12000) | 10000 (opt: 12000) | 10000 (opt: 12000) | 10000 (opt: 12000) |
Spindle nose | - | A2-15 | A2-15 | A2-15 | A2-15 |
Spindle bore | mm | 130 | 130 | 130 | 130 |
Spindle taper | - | Metric 140 | Metric 140 | Metric 140 | Metric 140 |
Chuck size (4-jaw) | - | 1250 | 1250 | 1250 | 1250 |
Spindle speed (Hydraulic 4steps, stepless) | rpm | 5-320 | 5-320 | 5-320 | 5-320 |
Max. cutting force | N | 29400 | 29400 | 29400 | 29400 |
X/Z-axis min. feed unit | mm | 0.001/0.001 | 0.001/0.001 | 0.001/0.001 | 0.001/0.001 |
X/Z-axis rapid feed speed | mm/min | 3000/6000 | 3000/6000 | 3000/6000 | 3000/6000 |
Cross travel (X) | mm | 700 | 700 | 700 | 700 |
Tool post type | - | V4 | V4 | V4 | V4 |
Tool post size | mm | 350x350 | 350x350 | 350x350 | 350x350 |
Tool section size | mm | 40x40 | 40x40 | 40x40 | 40x40 |
Tailstock quill diameter | mm | 220 | 220 | 220 | 220 |
Tailstock quill travel | mm | 300 | 300 | 300 | 300 |
Tailstock quill taper | - | MT6 | MT6 | MT6 | MT6 |
Working accuracy | - | IT6-IT7 | IT6-IT7 | IT6-IT7 | IT6-IT7 |
Surface roughness | um | Ra1.6 | Ra1.6 | Ra1.6 | Ra1.6 |
Main motor power | kw | 30 | 30 | 30 | 30 |
Machine weight | kg | 13500/16500/18000/20000/22500/25000/28000/- | |||
Machine length | mm | 6020/7020/8020/9020/11020/13020/15020/- | |||
Machine width/height | mm | 2665/2680 | 2665/2680 | 2665/2680 | 2665/2680 |
Specification | Unit | AK-1250C | AK-1400C | AK-1600C | AK-1800C |
Max. swing over bed | mm | 1250 | 1400 | 1600 | 1800 |
Max.. swing over cross slide | mm | 880 | 1010 | 1210 | 1210 |
Distance between centers | mm | 3000/4000/5000/6000/8000/10000/12000/- | |||
Max. turning length | mm | 2800/3800/4800/5800/7800/9800/11800/- | |||
Bed width | mm | 970 | 970 | 970 | 970 |
Loading capacity | kg | 10000 (opt: 12000) | 10000 (opt: 12000) | 10000 (opt: 12000) | 10000 (opt: 12000) |
Spindle nose | - | A2-15 | A2-15 | A2-15 | A2-15 |
Spindle bore | mm | 130 | 130 | 130 | 130 |
Spindle taper | - | Metric 140 | Metric 140 | Metric 140 | Metric 140 |
Chuck size (4-jaw) | - | 1250 | 1250 | 1250 | 1250 |
Spindle speed (Hydraulic 4steps, stepless) | rpm | 5-320 | 5-320 | 5-320 | 5-320 |
Max. cutting force | N | 29400 | 29400 | 29400 | 29400 |
X/Z-axis min. feed unit | mm | 0.001/0.001 | 0.001/0.001 | 0.001/0.001 | 0.001/0.001 |
X/Z-axis rapid feed speed | mm/min | 3000/6000 | 3000/6000 | 3000/6000 | 3000/6000 |
Cross travel (X) | mm | 700 | 700 | 700 | 700 |
Tool post type | - | V4 | V4 | V4 | V4 |
Tool post size | mm | 350x350 | 350x350 | 350x350 | 350x350 |
Tool section size | mm | 40x40 | 40x40 | 40x40 | 40x40 |
Tailstock quill diameter | mm | 220 | 220 | 220 | 220 |
Tailstock quill travel | mm | 300 | 300 | 300 | 300 |
Tailstock quill taper | - | MT6 | MT6 | MT6 | MT6 |
Working accuracy | - | IT6-IT7 | IT6-IT7 | IT6-IT7 | IT6-IT7 |
Surface roughness | um | Ra1.6 | Ra1.6 | Ra1.6 | Ra1.6 |
Main motor power | kw | 30 | 30 | 30 | 30 |
Machine weight | kg | 13500/16500/18000/20000/22500/25000/28000/- | |||
Machine length | mm | 6020/7020/8020/9020/11020/13020/15020/- | |||
Machine width/height | mm | 2665/2680 | 2665/2680 | 2665/2680 | 2665/2680 |
