| Swing Diameter: | |
|---|---|
| Centers Distance: | |
| Bed Width: | |
| Loading Capacity: | |
| Spindle Speed: | |
| Quantity: | |

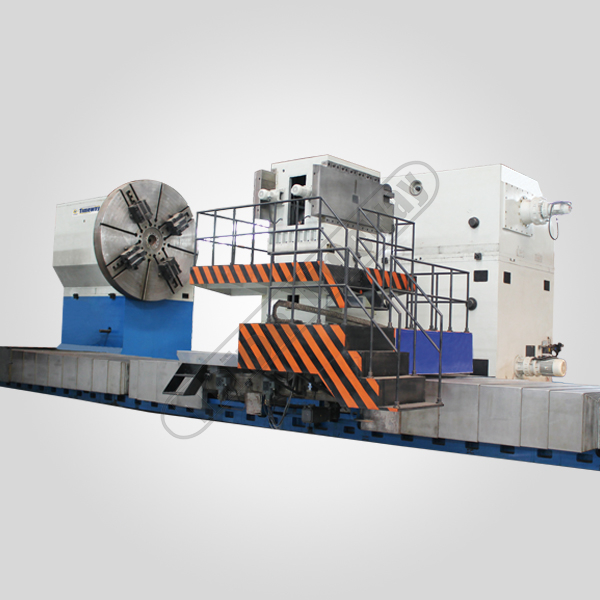

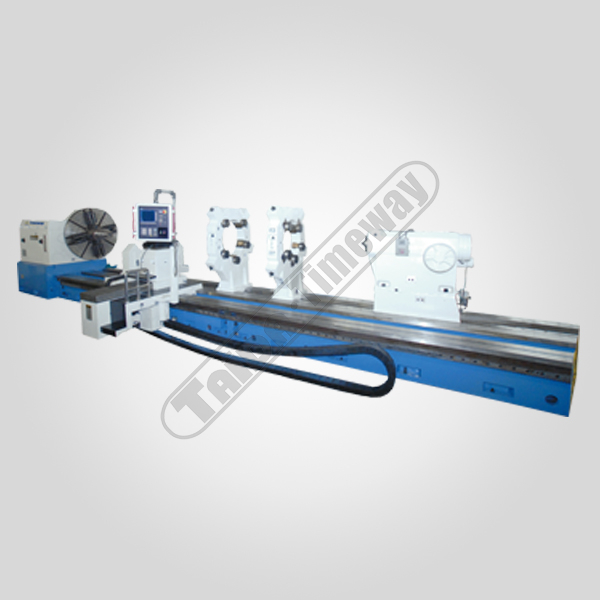

AK-2500H
Taida Timeway
Features：
This lathe bed is whole box-shaped three guide-way structure, adopting high standard cast iron (HT300) one molding casting, after the second aging treatment, it has the feature of stable performance; guide-way width (1600mm), good rigidity, anti-vibration ability.
The main mechanism is driven by the 75KW DC motor, using the method of adjustable magnetic regulation, adjustment voltage and hybrid speed regulating mode, the ratio is 1: 22.2, speed change is three steps, mechanical and electrical integrated speed ratio is 1: 200, spindle speed range is 0.8 ~ 160r / min and stepless speed change.
The spindle bore diameter is large, headstock adopts the split type structure, and the contact rigidity is improved after scraping. The spindle adopts the front and rear bearing structure, so that the radial and axial stiffness and rotation accuracy are high.
Heavy duty four-jaw chuck. Standard configuration has two steady rest, one is closed type, the other is open type.
It is equipped with protective device and emergency stop safety button, when the machine suddenly encountered a sudden power failure or other failures, due to the special design of the control circuit, it can be self-protection to ensure that the lathe and personnel safety.
The tailstock is composed of upper and lower body, the upper body is equipped with a sleeve, a spindle and a pressure sensor, and the lower body is equipped with a rapid moving mechanism.
This series lathe is based on the international market and the latest development trend of CNC lathes with semi-closed-loop control of the popular CNC heavy-duty lathes, 1600mm wide flat bed guide way provide users with a larger workpiece load, it is the ideal mechanical processing equipment for production of large parts.
