| Swing Diameter: | |
|---|---|
| Centers Distance: | |
| Bed Width: | |
| Loading Capacity: | |
| Spindle Speed: | |
| Quantity: | |
AK-2000
Taida Timeway
Features：

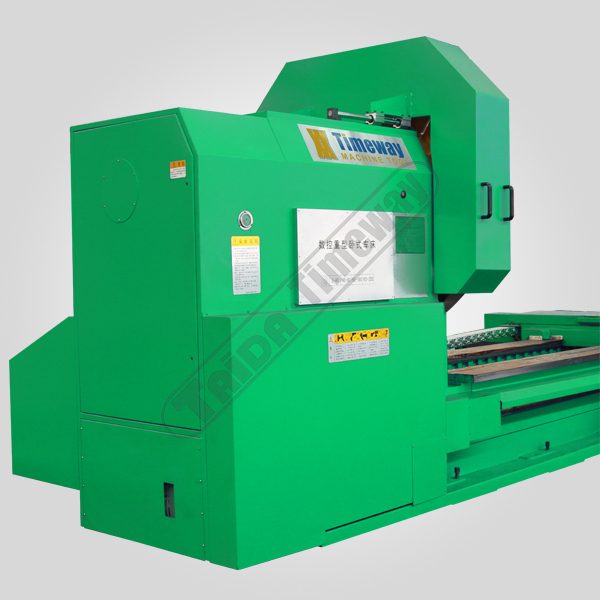

This series machine bed as a whole box-shaped structure, the use of high standard cast iron (HT300) a molding casting, after the second aging treatment, stable performance; rail span (1100mm), good rigidity, anti-vibration ability.
The spindle bore is 100mm, the box structure is strong, suitable for heavy processing.
Spindle speed can be 33 speeds by manual shift; Automatic shift speed control by the M-code, the automatically variable speed selection by S- code control, achieve stepless speed and constant linear cutting.

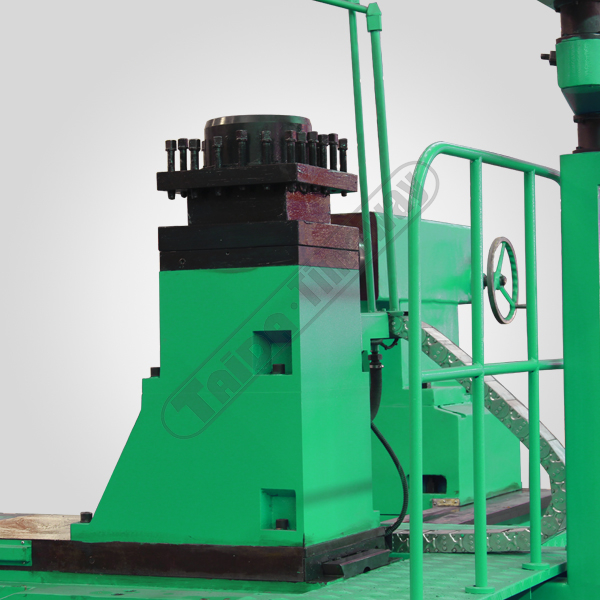

Equipped with 4-station vertical electric tool-post, but also according to their own needs with 6-station or 8-station variety of electric tool-post.

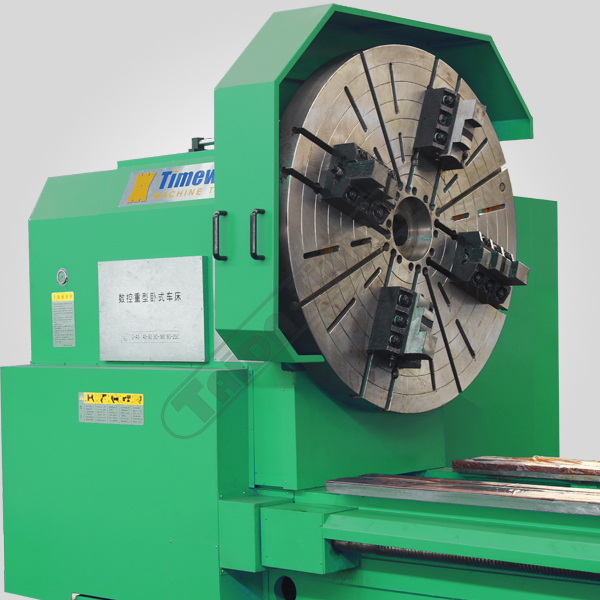

Spindle motor adopts the 30kw three-phase AC asynchronous motor, the output of large, variable range. Equipped with heavy duty four-jaw chuck.

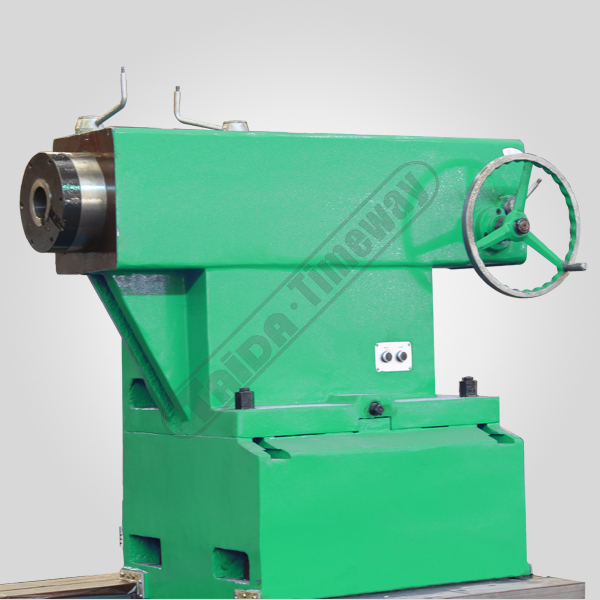

Tailstock structure is strong, can withstand heavy cutting, standard electric tailstock, to achieve automatic rapid movement, improve efficiency.

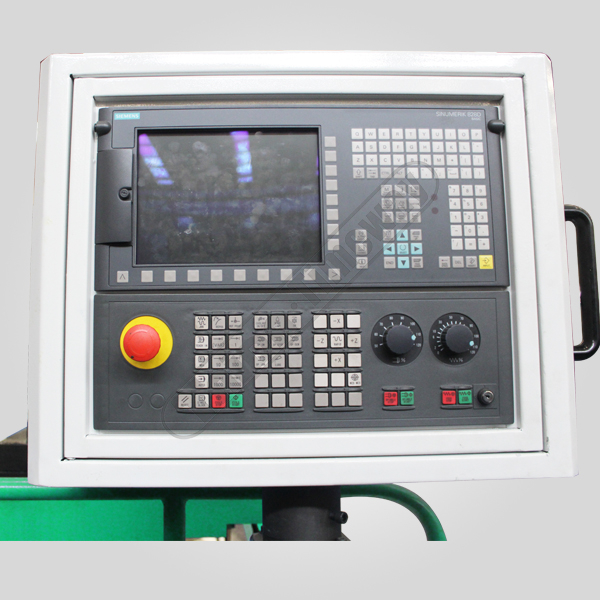

CNC system uses the world's most well-known SIEMENS 828D control system (also available according to user requirements matching other systems), can simultaneously control the 2-axis (X, Z), and has a straight line, arc and thread interpolation and other fixed cycle and other functions, the minimum resolution of 0.001mm.
Equipped with emergency stop safety button, when the machine suddenly encountered a sudden power failure or self-failure, due to the special design of the control circuit, the machine can be self-protection, to ensure that the machine and personnel safety, The control program has been "solidified" in the chip, will not be lost, because of it is stored in the program menu.

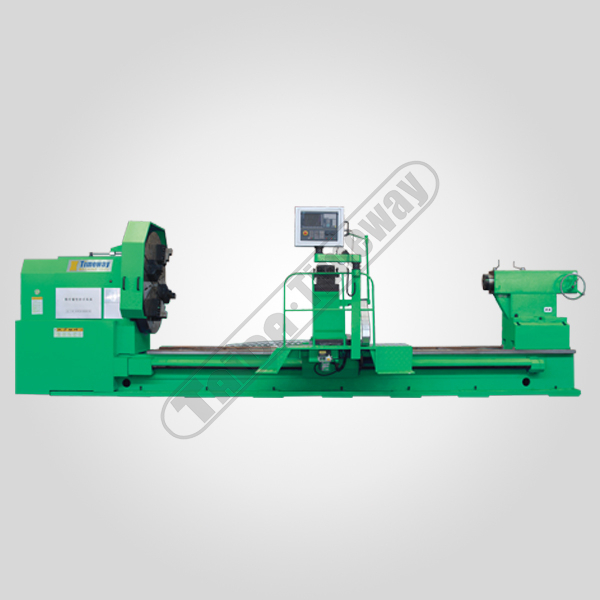

This series of machine is based on the international market, the latest development trend of CNC lathes developed with semi-closed-loop control of the universal CNC lathes. The machine is widely used, flexible operation, suitable for processing all kinds of complex shape of the shaft, disk parts, such as turning inner and outer cylindrical surface, conical surface, circular surface, end face, slot, chamfer, Especially for multi-species, small batch of turns processing, process adaptability, processing efficiency, low scrap rate, good consistency of the finished product, can reduce the technical requirements of the workers skilled. Easy programming, easy operation, is the ideal large-scale mechanical processing equipment.
